165 - Combined Tee & Crossover

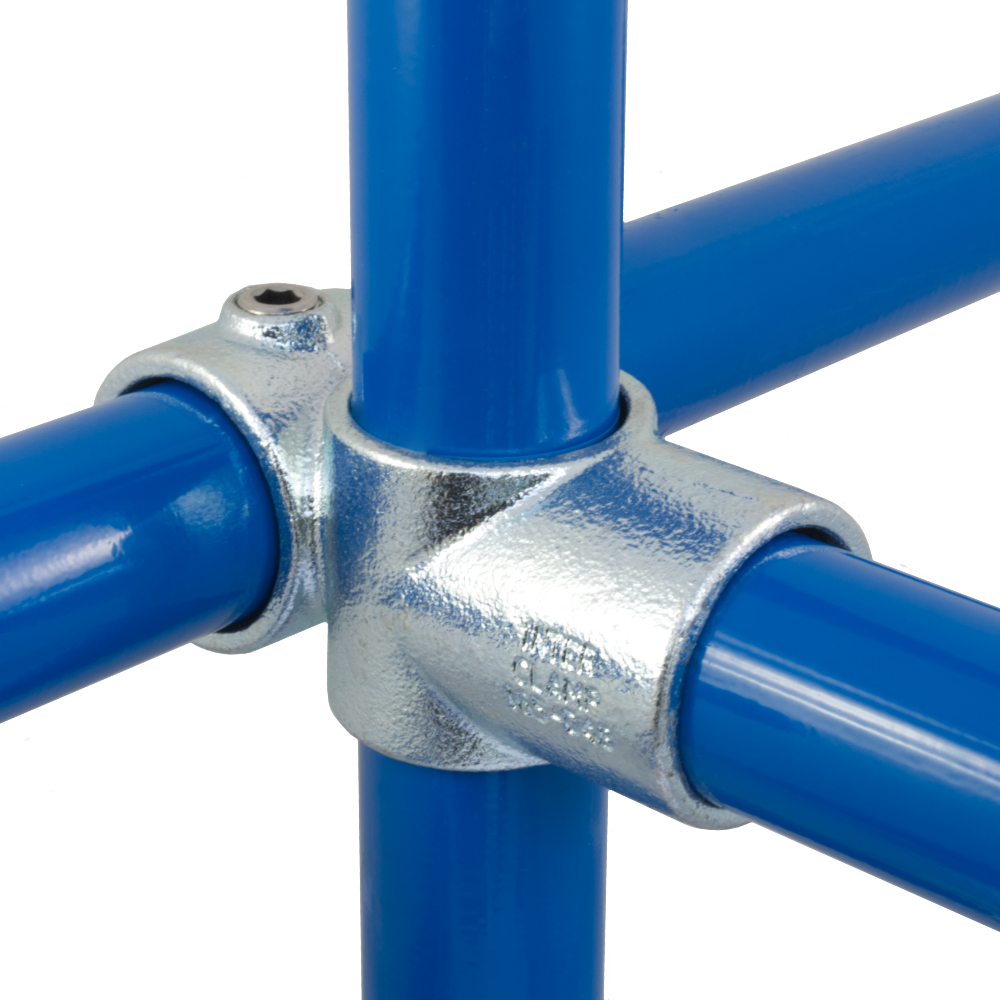

Often used in racking and similar structures, the fitting allows both uprights and front and rear horizontal rails to be continuous. It is usually preferable for the upright to be on the outside of the structure (as per the photo) for maximum stability. The through tubes cannot be joined within the fitting.
Dane i wymiary produktu
| Rozmiar | a (mm) | b (mm) | Waga (kg) | Box Qty* | Part No |
| B34 | 46 | 40 | 0.48 | 54 | 165-B34 |
| C42 | 60 | 49 | 0.69 | 35 | 165-C42 |
| D48 | 68 | 55 | 0.86 | 30 | 165-D48 |
| E60 | 84 | 68 | 1.33 | 15 | 165-E60 |
* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.
Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.
Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
