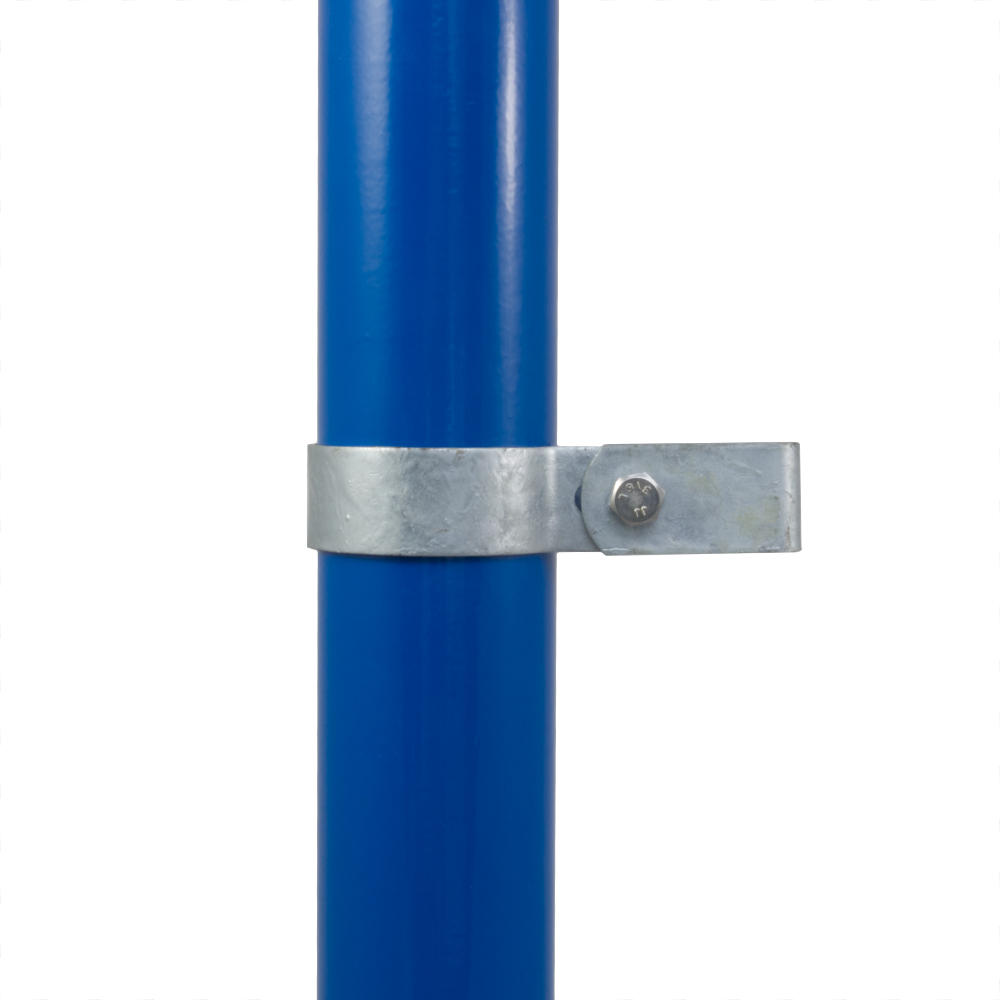

170 - Single Mesh Panel Clip

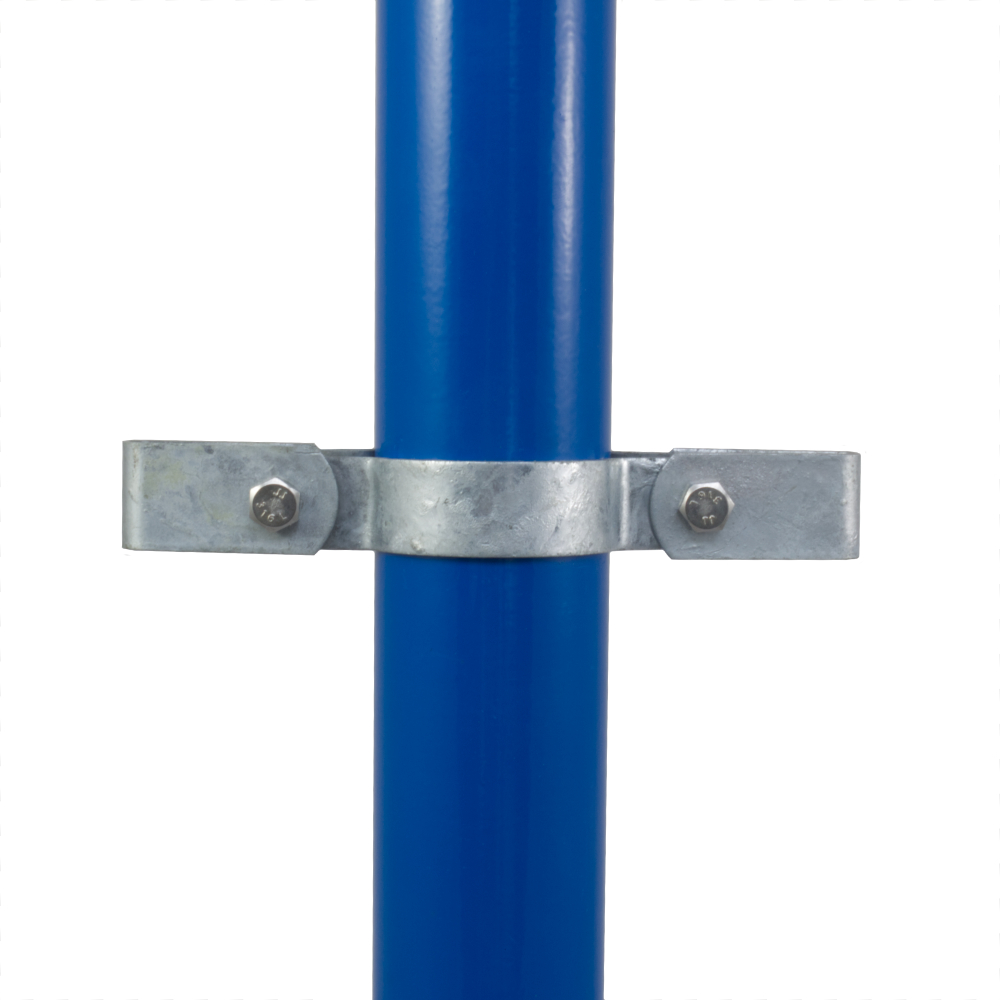

For attaching mesh panels to one side of tube. For double-sided clips, please refer to type 171. This fitting may also be used without the small return part to secure certain other types of sheet material to tubes eg. Board. The tube cannot be joined within the fitting.

N.B. This item is manufactured from steel, not malleable iron.
Please note that bolts are BZP coated.

Designed to suit 8mm rod.

Dane i wymiary produktu

Rozmiar a (mm) b (mm) Waga (kg) Box Qty* Part No
  A27   50 - 64   23 - 38   0.06   160   170-A27
  B34   54 - 64   28 - 38   0.06   250   170-B34
  C42   60 - 70   34 - 44   0.08   200   170-C42
  D48   62 - 72   34 - 44   0.08   180   170-D48
  E60   70 - 80   45 - 55   0.10   150   170-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
