750 Assist Expanding Fitting

750 Assist Expanding Fitting

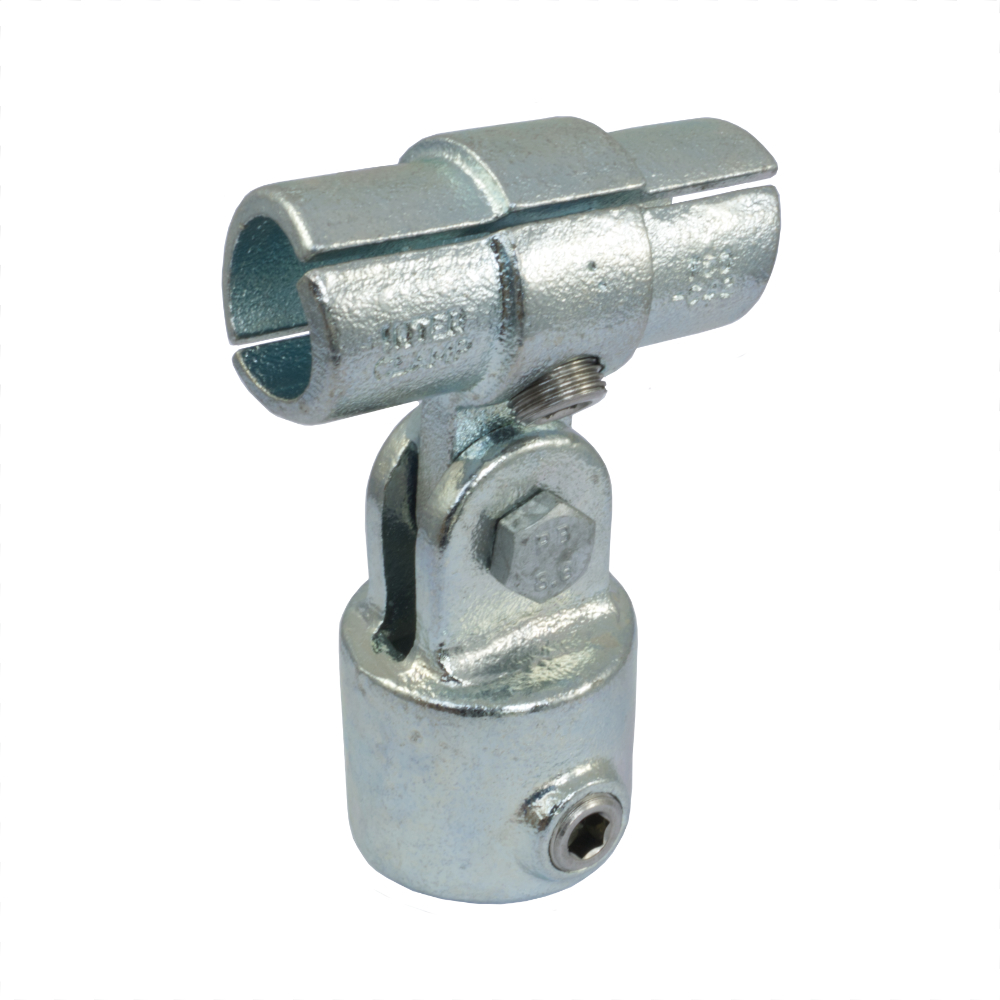

750 assist expanding fitting with male lug attached to a 173F swivel designed to attach a freestanding galvanised handrail to an upright at a variable angle.

The top section of the fitting expands into the galvanised handrail tube and is primarily used to join two lengths of handrail tube together. Where no joining of handrail tube is required look at the 751 fitting instead. The173F female swivel fixes onto the top of the upright posts and in conjunction with the bolt and nut supplied you can adjust the horizontal rail to the desired angle.

The 750 fitting is supplied with the 750M top expanding bracket, 173F swivel female, and a bolt and nut unassembled.

Zasięg Drukować < Poprzedni Następny >

Dane i wymiary produktu

Dimensions Image 1 - 750 Assist Expanding Fitting
Dimensions Image 2 - 750 Assist Expanding Fitting
Rozmiar a (mm) b (mm) c (mm) Waga (Kg) Box Qty* GTIN / EAN No
  C42   25   32   25.4   0.97   32   5060511022958
  D48   -   -   -   1.13   32   5060511022972
  C42/D48   -   -   -   1.03   32   5060511022965

* Fittings are sold individually and do not need to be bought in box quantites. Box Quanties may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
