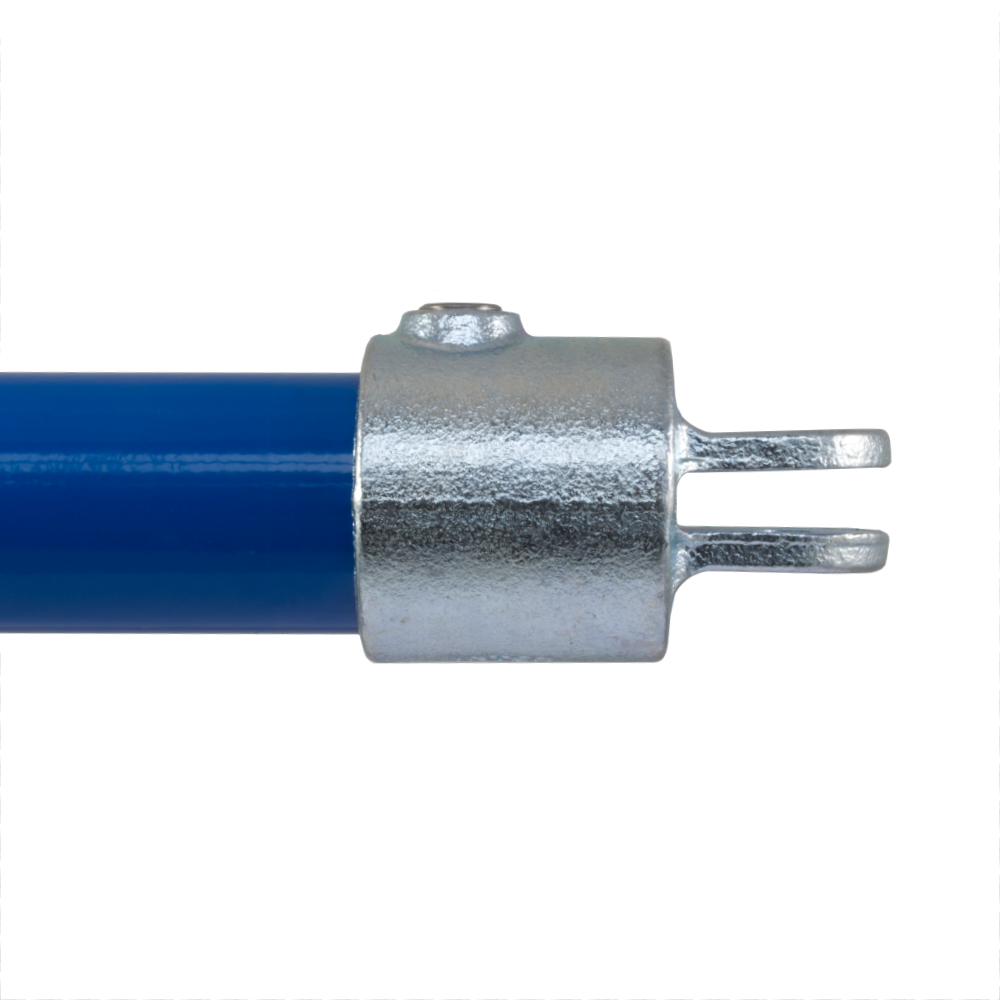

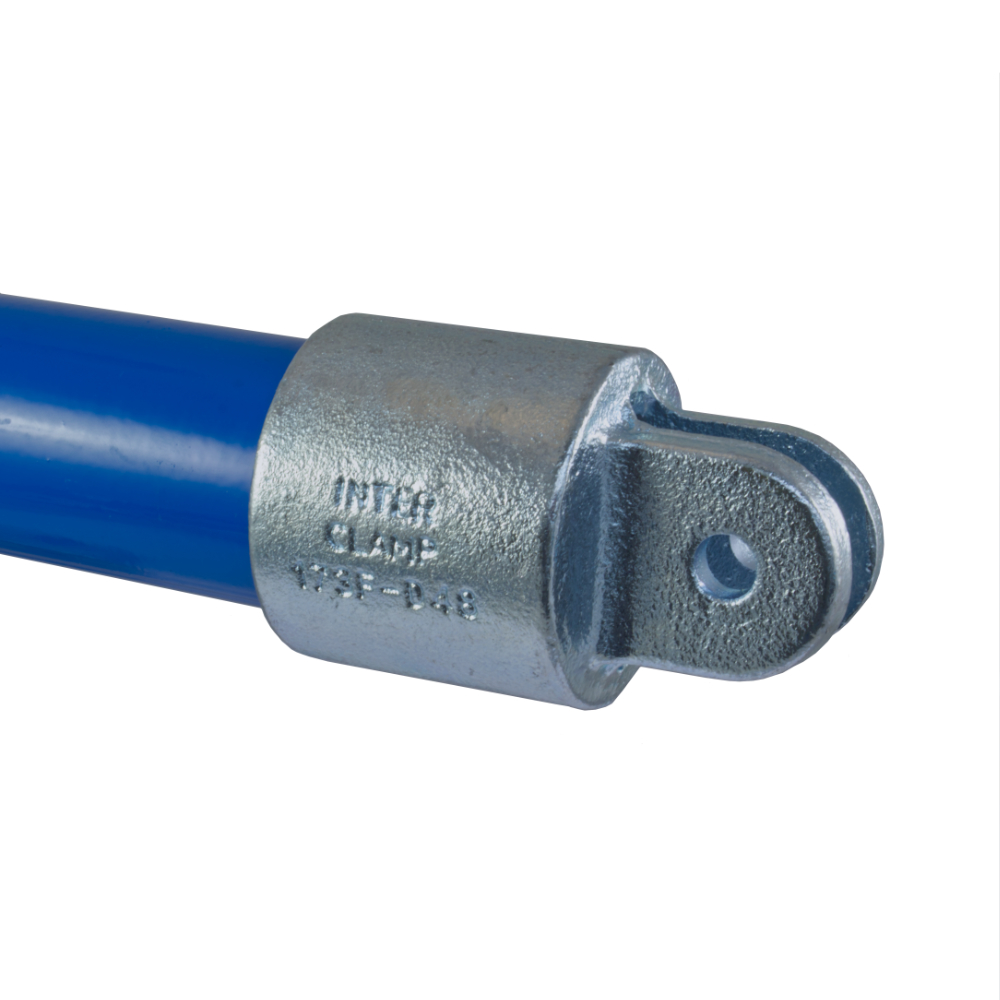

173F - Single Swivel Combination Female Part

Versatile fitting with a multitude of uses. Can be supplied pre-assembled with other fittings to form types 167168169 and 173.

Warning: To provide sufficient stability, whole structures must not be made from swivel fittings alone.

Dane i wymiary produktu

Rozmiar a (mm) b (mm) Waga (kg) Box Qty* Part No
  A27   61   38   0.27   143   173F-A27
  B34   61   38   0.36   108   173F-B34
  C42   69   46   0.44   64   173F-C42
  D48   77   55   0.50   60   173F-D48
  E60   89   65   0.80   42   173F-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
