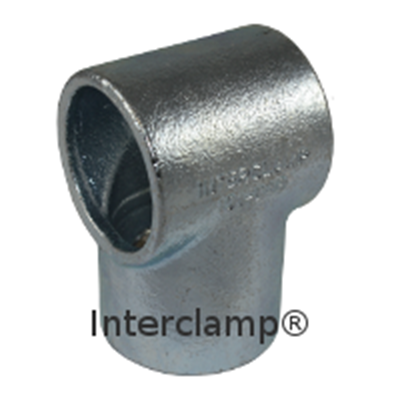

101 - Short Tee

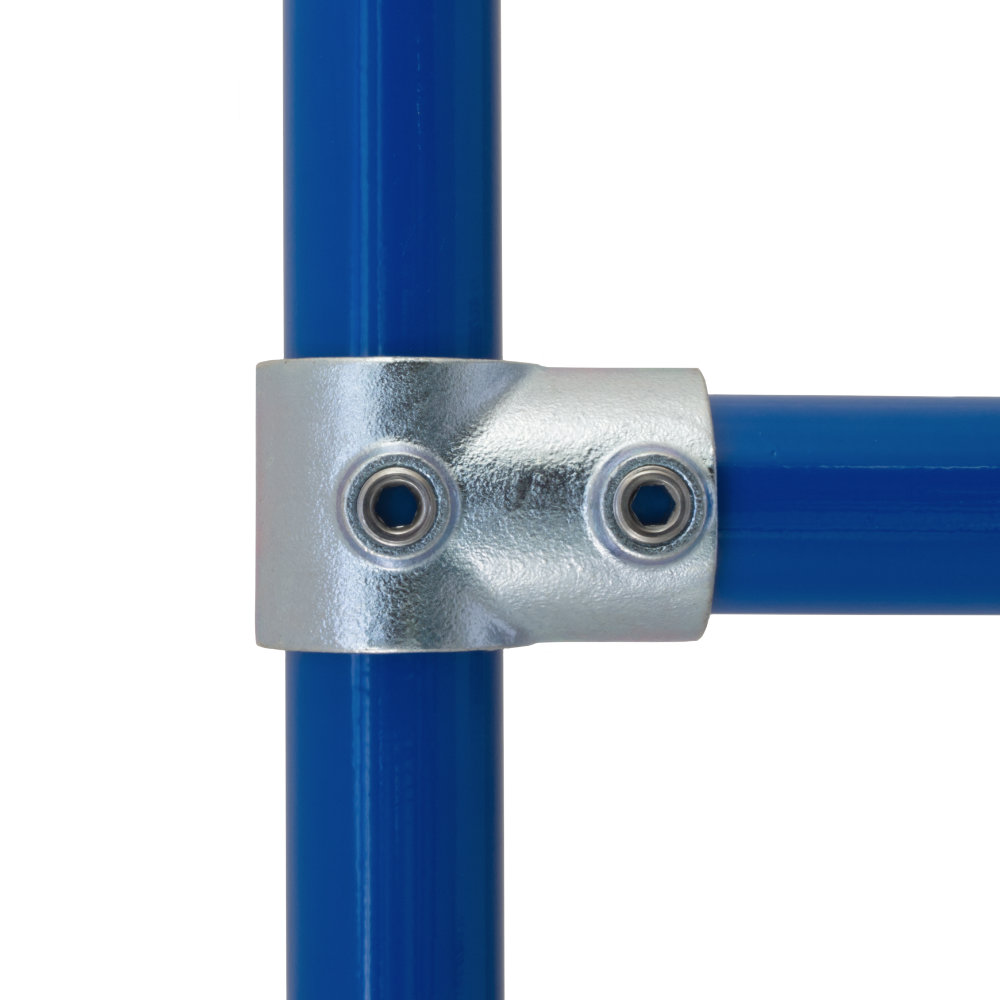

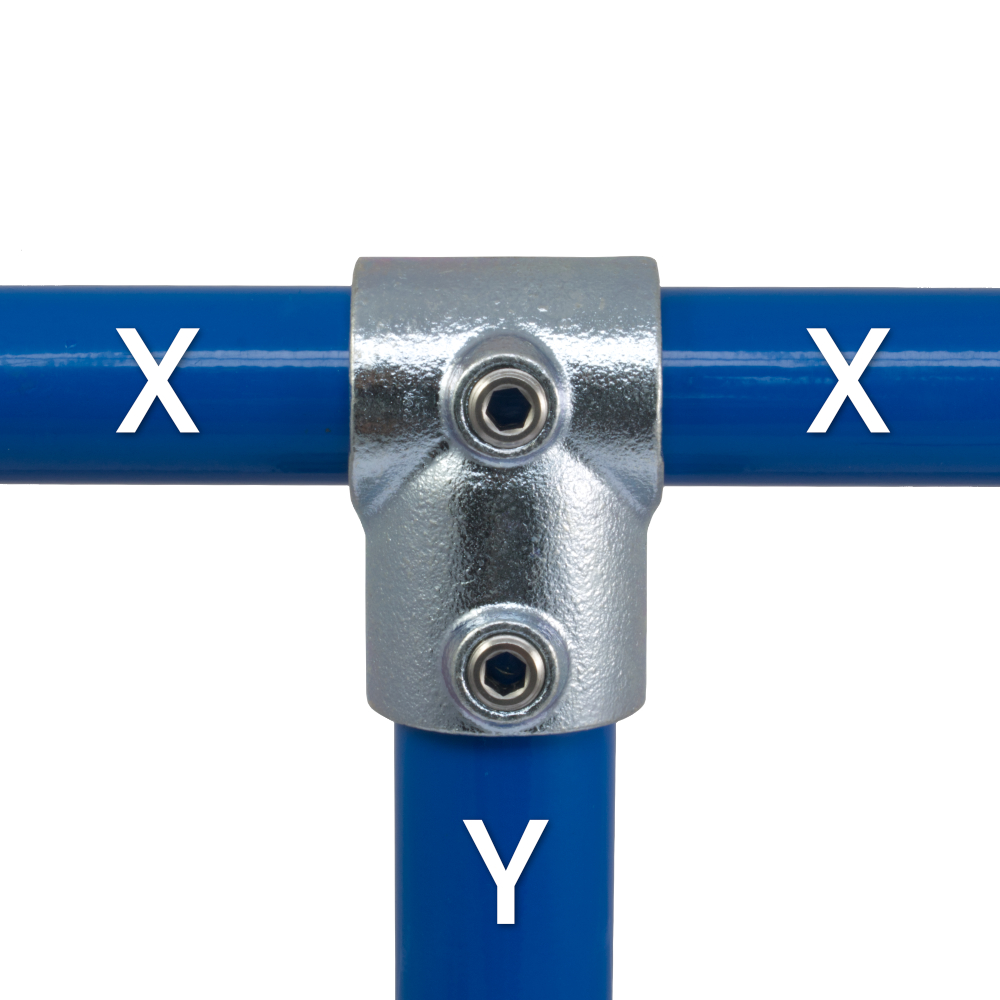

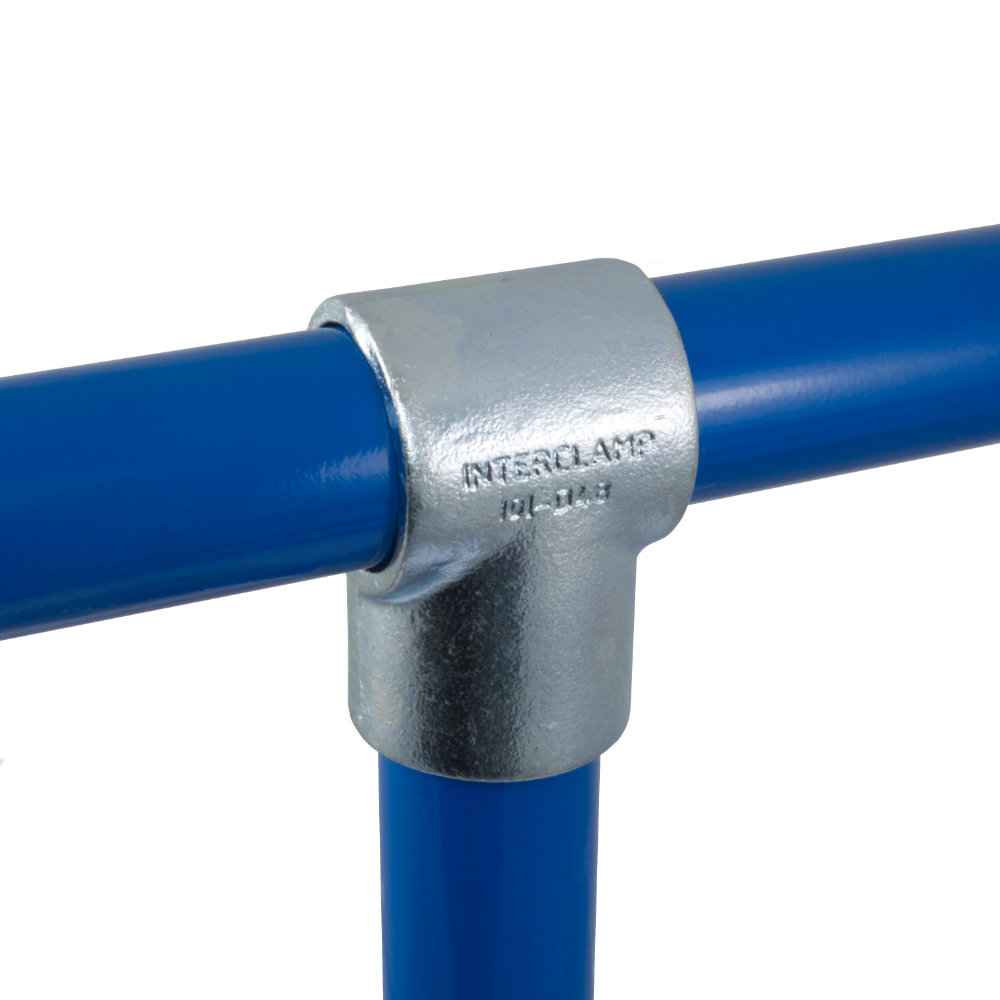

90° butt joint, often used to join intermediate uprights to top rails and middle rails to end uprights on level sites.

This Interclamp cannot be used where through tube (horizontal in photo) has to be joined within the fitting (See Interclamp 104).

Dane i wymiary produktu

Rozmiar a (mm) Waga (kg) Box Qty* Part No
  A27   41   0.20   165   101-A27
  B34   46   0.32   84   101-B34
  C42   60   0.48   50   101-C42
  D48   68   0.57   42   101-D48
  E60   84   0.89   22   101-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
