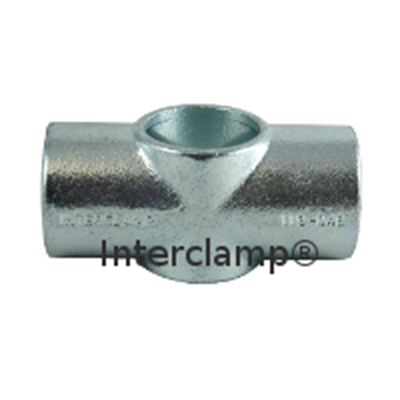

119 - Cross (Middle Rail)

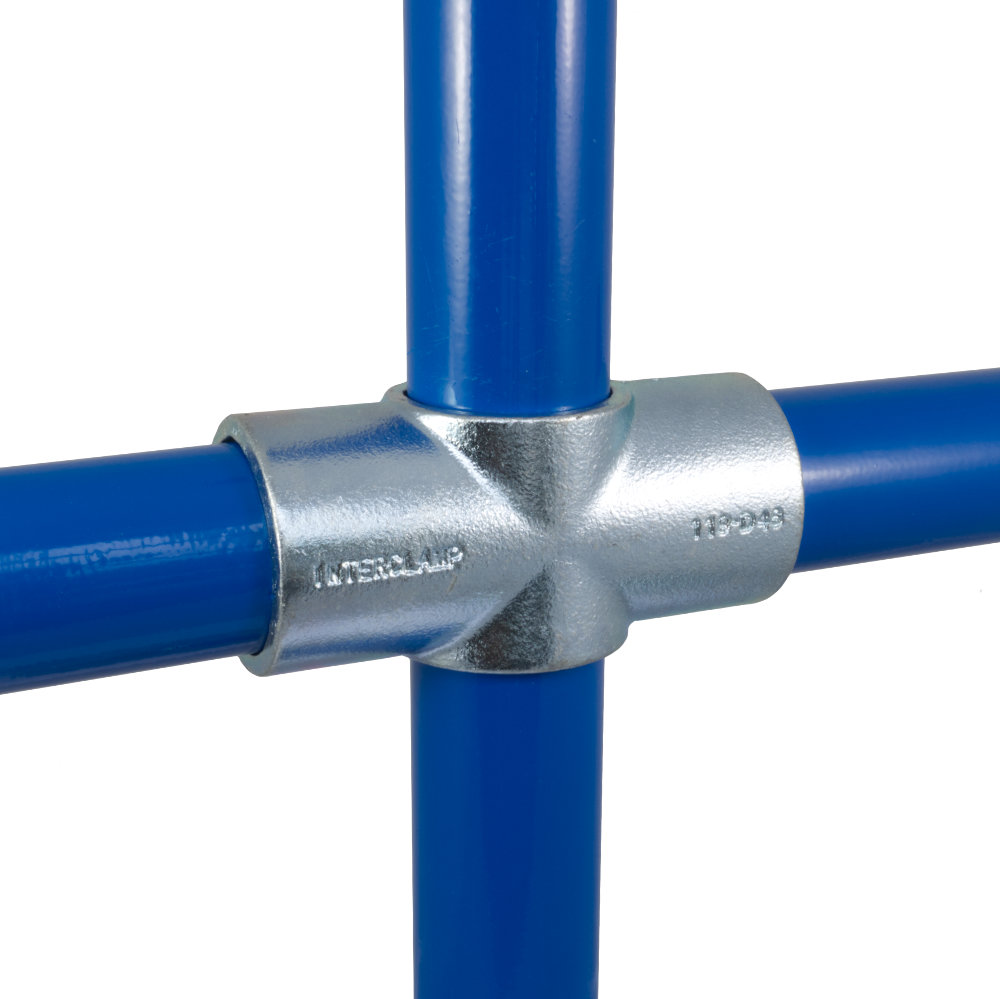

90° joint, often used between middle rail and uprights on level sites and often paired with type 101 or 104. The through tube (vertical in photo) cannot be joined within the fitting.

Dane i wymiary produktu

Rozmiar b (mm) Waga (kg) Box Qty* Part No
  A27   82   0.27   115   119-A27
  B34   92   0.39   60   119-B34
  C42   120   0.65   40   119-C42
  D48   135   0.75   28   119-D48
  E60   168   1.23   10   119-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
