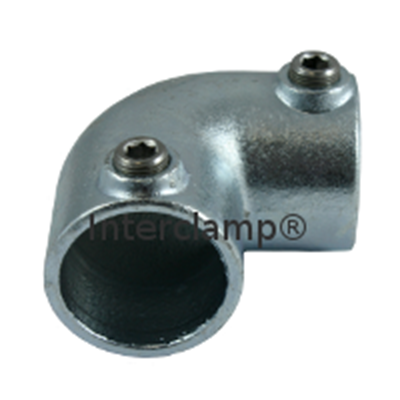

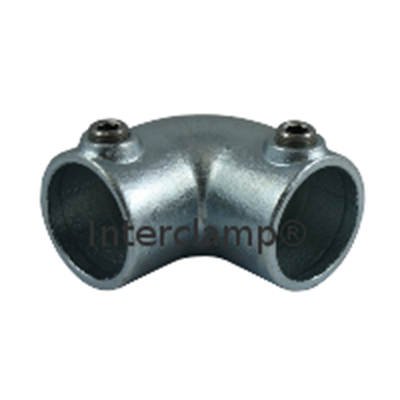

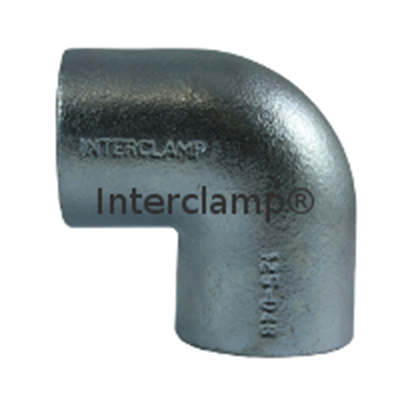

125 - 90° Elbow

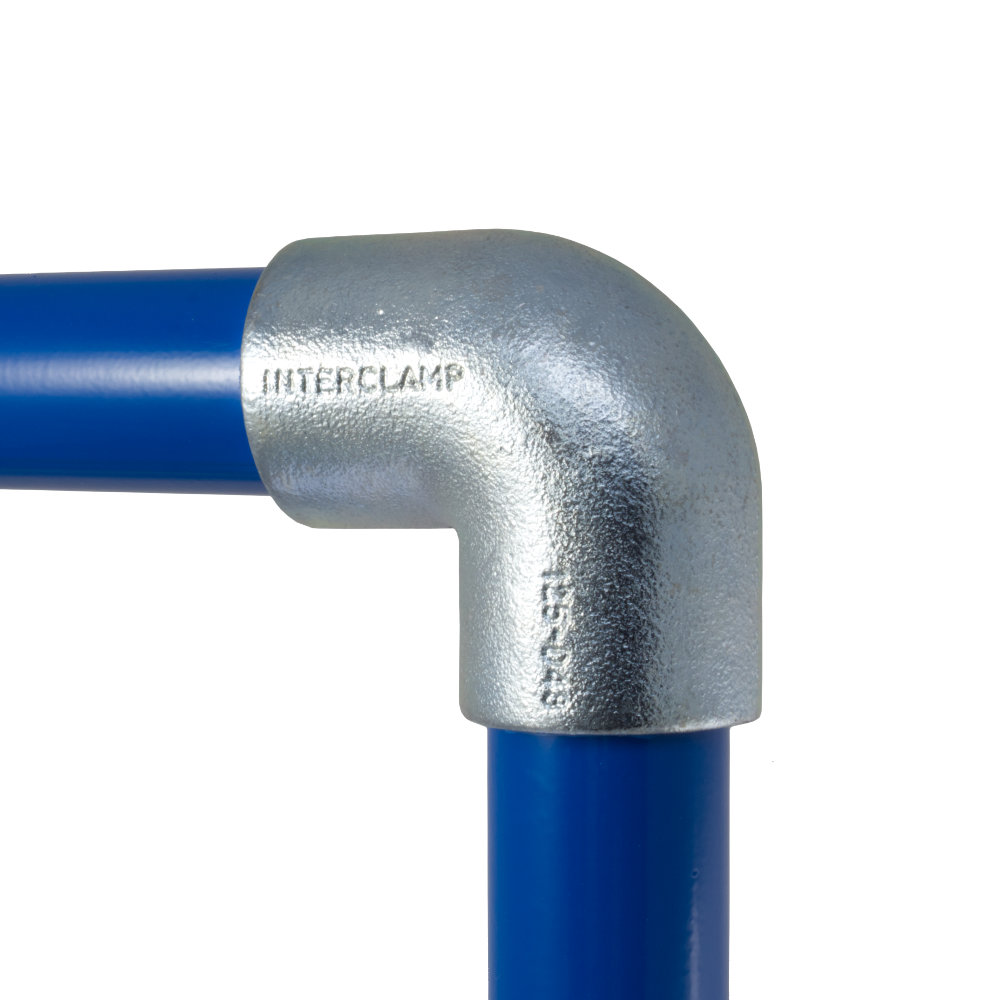

90° angle joint, often used where top rail meets end upright on level sites.

Dane i wymiary produktu

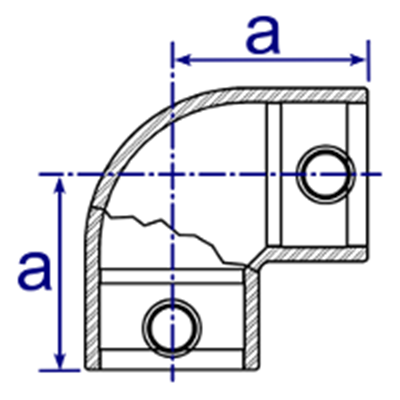

Rozmiar a (mm) Waga (kg) Box Qty* Part No
  A27   41   0.25   108   125-A27
  B34   46   0.38   80   125-B34
  C42   60   0.61   40   125-C42
  D48   68   0.73   30   125-D48
  E60   84   1.19   15   125-E60

* Fittings are sold individually and do not need to be bought in box quantities. Box quantities may be subject to change without prior notice.

Figures given as guidance only, dimensions and weights are subject to manfacturing tolerances and may be altered without prior notice.

Do not perform any pre-drilling, tube cutting, casting uprights or any other dimensionally critical processes prior to receiving fittings.
